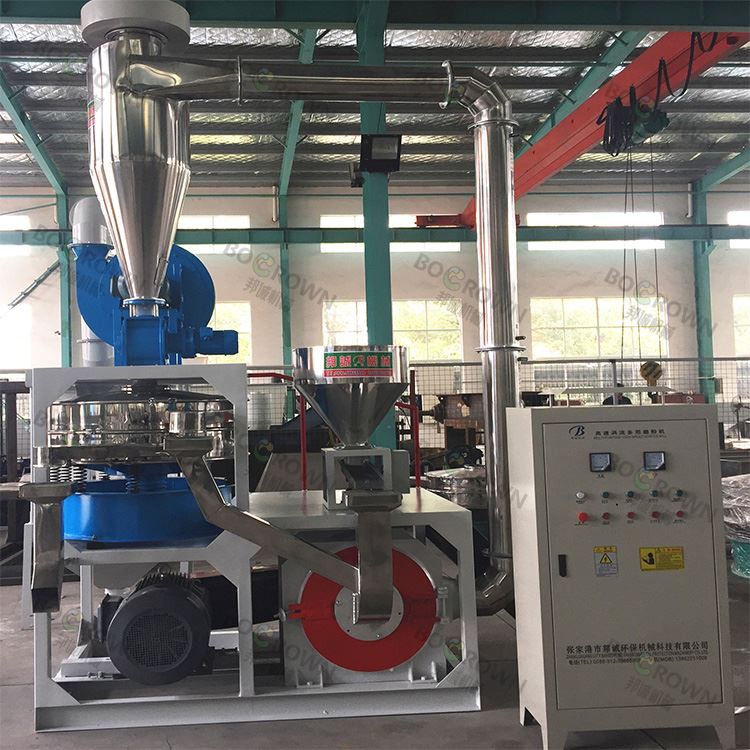

PVC Pipe Grinder Machine
The PVC Pipe Grinder Machine is an industrial equipment specifically designed for the recycling and processing of PVC pipes. It can quickly crush waste PVC pipes, profiles, and scraps into uniform particles or small fragments, facilitating subsequent regeneration, granulation, or recycling.
This equipment is widely used in the plastic recycling industry, PVC pipe manufacturing plants, and environmental recycling fields, and is one of the important pieces of equipment for achieving efficient reuse of PVC waste.
Working principle
The PVC Pipe Grinder Machine cuts and crushes PVC pipes entering the crushing chamber through the shearing action between a high-speed rotating cutter shaft and fixed blades. The crushed material is then screened to control particle size; any material that does not meet the size requirements continues to circulate within the crushing chamber until it reaches the set size specifications.
Features
High-efficiency crushing capability
Suitable for direct crushing of large-diameter PVC pipes.
Robust and durable structure
Heavy-duty steel frame with strong impact resistance.
Wear-resistant design
Utilizes high-strength alloy blades for long service life.
Uniform and controllable particle size
The screen system allows for adjustment of the output size.
Stable operation and low noise
Optimized dynamic balance design, resulting in minimal vibration.
Simple maintenance
The cutting tools are easy to disassemble and assemble, and the maintenance cost is low.
Product Technical Parameters
|
Project |
Parameter Description |
|
Equipment type |
PVCPipeGrinder/Crusher |
|
Applicable pipe diameter |
16mm–630mm (customizable) |
|
Production range |
200–1500 kg/h |
|
Main motor power |
22–90kW |
|
Tool materials |
SKD-11/D2 alloy steel |
|
Cutter shaft structure |
Flat blade/angled blade design (optional) |
|
Sieve mesh size |
10–60mm |
|
Discharge method |
Pneumatic or conveyor belt discharge |
|
Control system |
Electrical control cabinet |
Application industries
PVC pipe manufacturers
Plastics recycling and regeneration industry
Construction waste treatment industry
Environmental protection and resource recycling factory
Plastic product processing plant
