Vertical High-Speed Mixer Unit
Advanced SRL500/1000L High Speed Hot and Cold Mixer for Efficient Plastic Material Processing

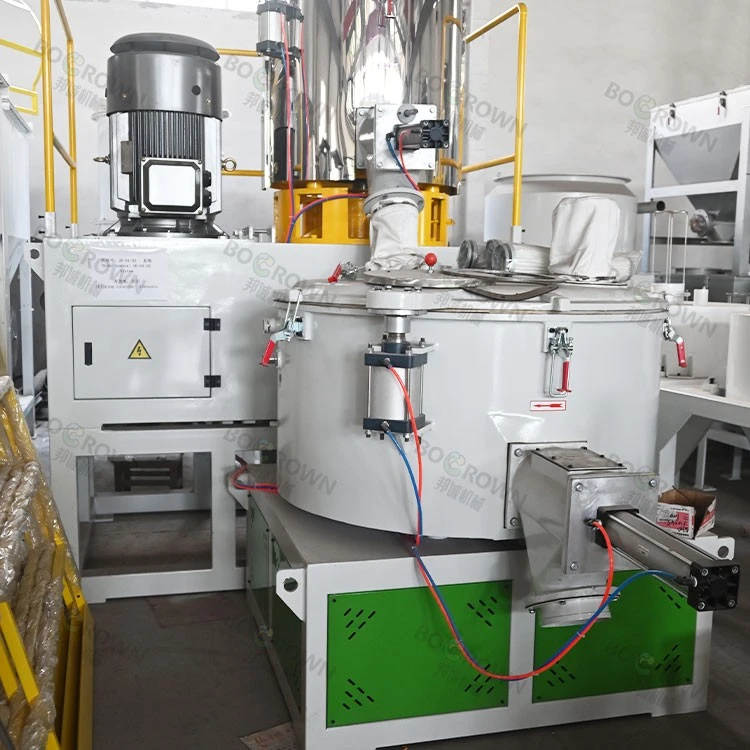

The SRL500/1000L High Speed Hot and Cold Mixer is a professional plastic processing machine designed for high-efficiency mixing, heating, cooling, and homogenization of PVC compounds, plastic additives, masterbatch, and other polymer materials. With a 500L hot mixing chamber and 1000L cold mixing chamber, this high-performance PVC mixing machine provides stable production capacity, excellent mixing uniformity, and reliable continuous operation for large-scale plastic manufacturing applications.
Process function
High Speed Hot and Cold Mixers are designed for plastic extrusion, pipe production, profile manufacturing, cable materials, and other polymer processing industries, the SRL500/1000L High Speed Mixer Unit integrates advanced mechanical design, automatic temperature control, and energy-efficient operation to help manufacturers improve productivity, reduce labor costs, and achieve consistent product quality.
As a professional high speed hot and cold mixer manufacturer, we provide customized solutions according to different material characteristics, production requirements, and factory layouts, supporting global customers with reliable equipment performance and long-term technical service.
mixing process
The complete mixing process includes:
High-speed material dispersion
Friction heating and temperature rising
Additive absorption and uniform blending
Cooling and stabilization
Automatic discharge for continuous production
Compared with traditional mixing equipment, the SRL500/1000L PVC hot and cold mixer offers higher efficiency, better mixing consistency, and lower operating costs for modern plastic processing plants.
Working principle
The working principle of the high speed hot and cold mixer machine is based on mechanical shearing, friction heating, and forced cooling technology.
Technical parameters
| Item | Specification |
|---|---|
| Model | SRL500/1000L |
| Hot Mixing Volume | 500L |
| Cooling Mixing Volume | 1000L |
| Mixer Type | High Speed Hot Mixer + Cooling Mixer |
| Application Materials | PVC, PE, PP, ABS, Masterbatch, Polymer Compounds |
| Mixing Method | High Speed Shearing & Forced Cooling |
| Control System | PLC Automatic Control |
| Temperature Control | Automatic Monitoring System |
| Material Contact Parts | Stainless Steel Available |
| Application | Plastic Extrusion, Pipe, Profile, Cable, Sheet Production |
Application areas
PVC pipe and profile production
Plastics Modification and Blending Industry
Cable and electrical materials production
Chemical powder processing industry
Production of dry powder mortar for construction
Industrial-grade composite material manufacturing
I. 500L High-Speed Hot Mixer Main Unit
1. Cylinder Material: 304 stainless steel in contact with materials, polished inner wall to prevent material sticking, thickened wear-resistant bottom lining, and rounded corners to prevent powder accumulation.
2. Agitator: Three-layer high-wear-resistant blades, integrally cast, dynamically balanced, effectively breaking up powder lumps for uniform and stable mixing.
3. Drive Motor: Standard Siemens Bede motor, two models available:
◦ Dual-speed motor: High and low speed switching, cost-effective, meeting conventional mixing processes;
◦ Variable frequency motor: Steplessly adjustable speed, adaptable to diverse and high-precision mixing production needs.
Equipped with chain reduction drive and water-cooled sealed shaft head, effectively preventing dust from entering the bearings and extending equipment lifespan.
4. Heating Structure: The cylinder jacket uses circulating heat transfer oil heating, combined with an electric heating heat transfer oil furnace, ensuring precise temperature control and suitability for hot mixing processes of rubber and plastic powders.
5. Lid Opening Structure: Pneumatic quick-opening top cover, silicone overall seal, with a reserved dust removal connection interface.
6. Discharge Valve: Bottom-operated large-diameter pneumatic butterfly valve, ensuring fast discharge speed, excellent sealing, and no powder leakage.
II. 1000L Cooling Mixer Main Unit
1. Cylinder Material: 304 stainless steel polished cylinder, double-layer water-cooled jacket structure, rapid water cooling to prevent powder agglomeration due to temperature rise.
2. Mixing Structure: Low-speed, wide-range mixing paddle, gently agitates materials, ensuring uniform cooling and preventing material crushing damage.
3. Drive Components: Uses a Siemens Bede variable frequency geared motor, ensuring stable low-speed operation, equipped with water-sealed dustproof bearing seats, providing excellent dustproof sealing.
4. Feed Inlet: Precisely connects to the hot mixer's discharge port, with a fully sealed pipeline design to prevent dust leakage.
5. Unloading Mechanism: Side-mounted pneumatic butterfly valve for smooth discharge, compatible with various downstream conveying equipment.
6. Matching Accessories: Complete cooling water circulation piping and water temperature monitoring instruments.
III. Automated Control System
1. Adopts Siemens PLC control system with touch screen display for intuitive and convenient operation.
2. Fully automated integrated production process: Automatic feeding → Hot mixing and heating → Automatic unloading → Cold mixing and cooling circulation.
3. Three-level access control with password management: Differentiated access for operators, technicians, and engineers, ensuring more standardized equipment management.
4. Automatic alarm for equipment malfunctions, pop-up window indicating the cause and solution, automatic retention of operating records for at least 4 weeks.
5. Core electrical components: ABB frequency converter and Schneider low-voltage electrical components, ensuring stable performance and low failure rate.
Get a Customized SRL500/1000L High Speed Mixer Solution Today
Choosing the right SRL500/1000L High Speed Hot and Cold Mixer can significantly improve plastic production efficiency, reduce operating costs, and enhance product quality.
Whether you are producing PVC pipes, profiles, cables, sheets, or modified plastics, our professional mixing equipment provides reliable performance and long-term value.
Contact us today for technical consultation, customized solutions, and competitive quotations for your plastic processing project.
