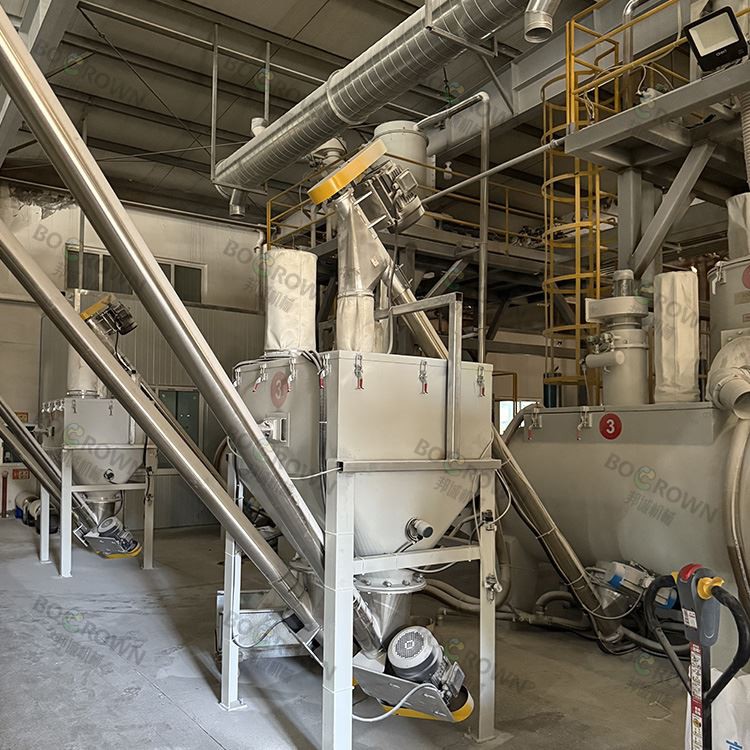

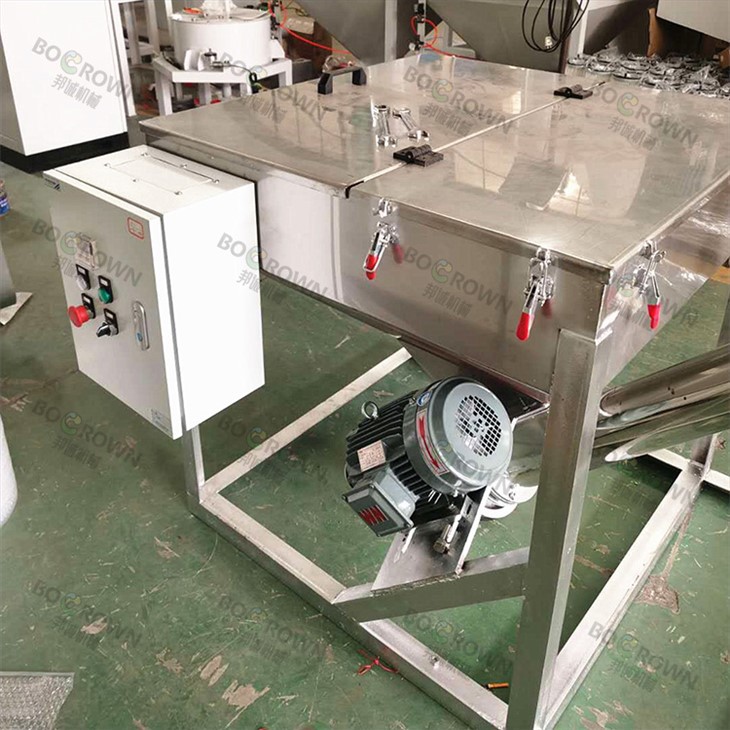

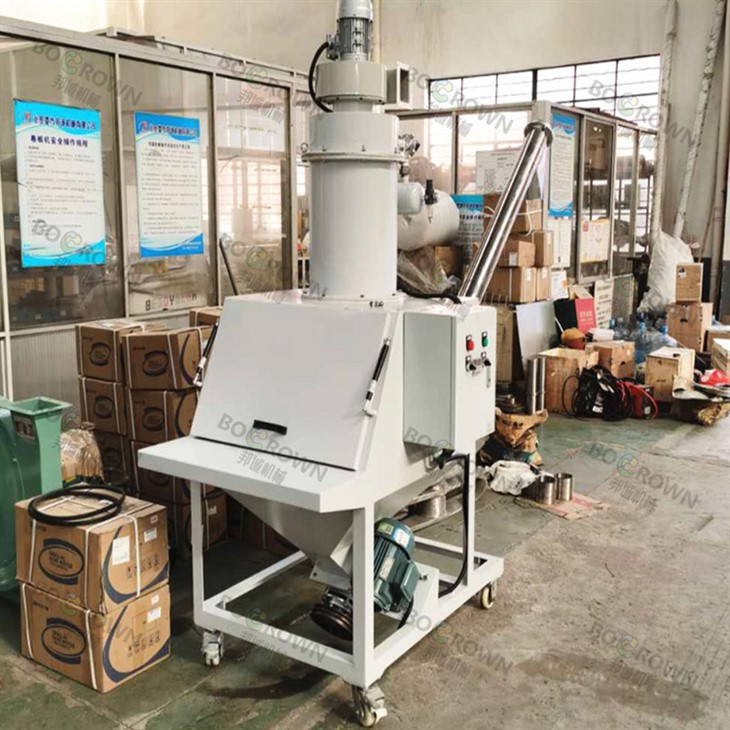

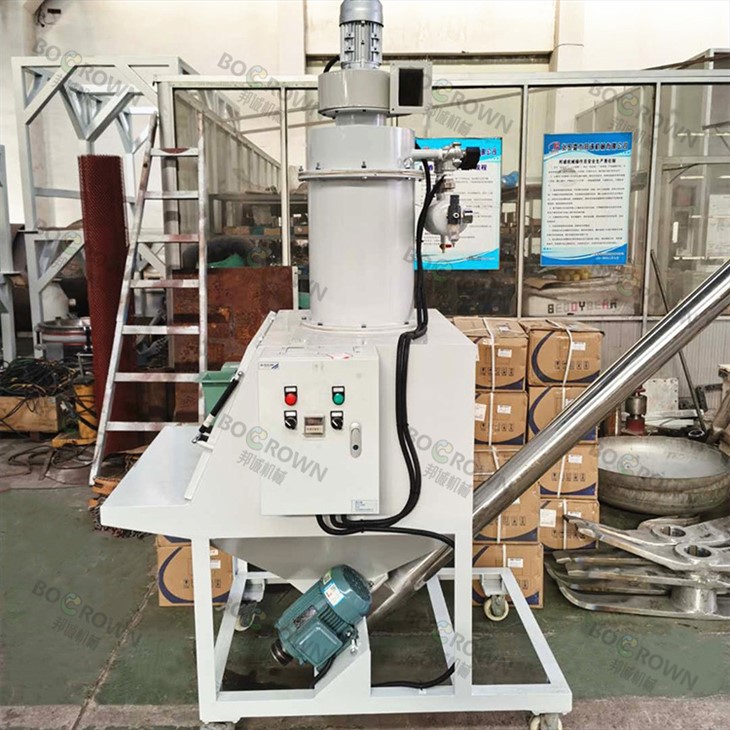

Single Shaft Screw Feeders
Single-shaft screw feeders are industrial equipment used for the quantitative conveying and stable feeding of powders, granules and small lumps. They are widely used in plastics processing, chemical, food, building materials and environmental protection powder systems.
This Inclined Screw Feeder Conveyor equipment uses a single spiral shaft to rotate within a closed or semi-closed tube, enabling continuous, uniform, and controllable material conveying. It is suitable for production processes that require high feeding accuracy and stability.
Working principle
The Single Shaft Screw Feeder uses a motor to drive the screw shaft to rotate, causing the material to move axially under the push of the screw blades.
During the transportation process:
- The material is continuously pushed by the spiral blades
- The conveying capacity is controlled by the rotation speed or frequency conversion system.
- It can achieve continuous or intermittent quantitative feeding.
- The sealed structure effectively reduces dust leakage.
Applicable materials
This equipment is suitable for a variety of industrial materials:
- PVC/PE/PP plastic powder
- Fillers such as calcium carbonate and talc
- Chemical Powders and Additives
- Food-grade powders and additives
- Cement, mineral powder and building materials
- Recycled powders and recycled materials
Product Structure Features
Single-shaft spiral structure design: stable conveying and simple structure
Wear-resistant spiral blades: suitable for highly abrasive materials
Closed-loop conveying pipes/tanks: Reduce dust pollution
Variable frequency control system: Achieve precise feeding control
Modular design: facilitates installation and maintenance
Multiple inlet and outlet interfaces: adaptable to different production lines
Product performance characteristics
High conveying stability and strong continuous operation capability
Feeding precision is controllable, making it suitable for batching systems.
Simple structure and low maintenance cost

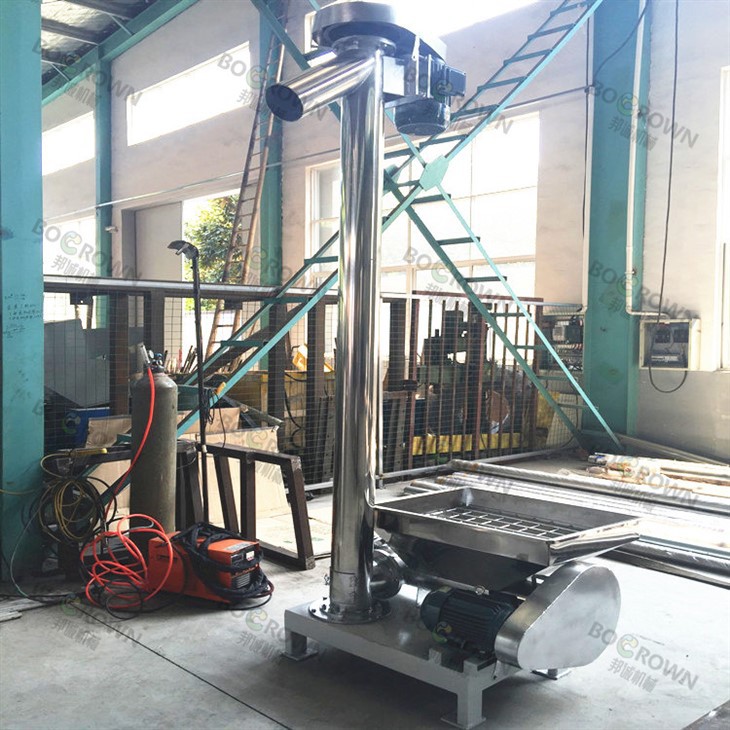

Can be installed horizontally, at an angle, or vertically.
Good sealing performance reduces dust leakage.
Easy to integrate with automated systems
Technical parameters
|
Project |
Parameter Description |
|
Equipment Name |
Single Shaft Screw Feeder |
|
Conveying methods |
Single-shaft screw conveyor |
|
Conveying capacity |
0.5–50 m³/h |
|
Helix diameter |
100–400mm |
|
Conveying length |
1–20m (customizable) |
|
Motor power |
0.75–15kW |
|
Control method |
Variable frequency speed control/PLC control (optional) |
|
Material |
CarbonSteel/SUS304/SUS316 |
|
Installation method |
Horizontal/Tilt/Vertical |
Application areas
Plastic compounding and extrusion production line
Chemical powder conveying system
PVC/PE/PP processing system
Food and feed processing industry
Building materials and cement production lines
Industrial automated batching system
Product Advantages
Single Shaft Screw Feeders enable stable, continuous, and controllable material conveying, making them particularly suitable for precise feeding of powders and granules. They are an indispensable basic conveying equipment in modern industrial automated production lines.
