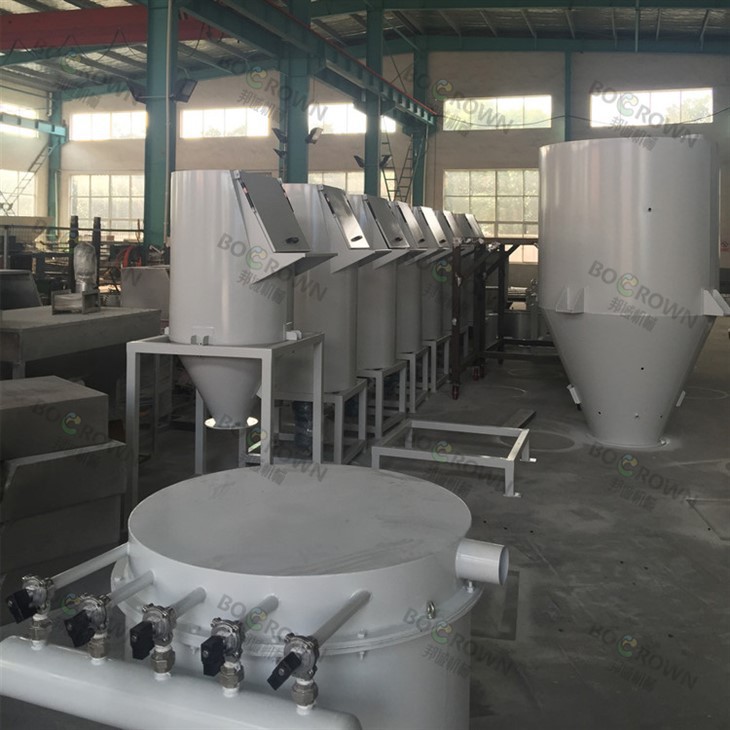

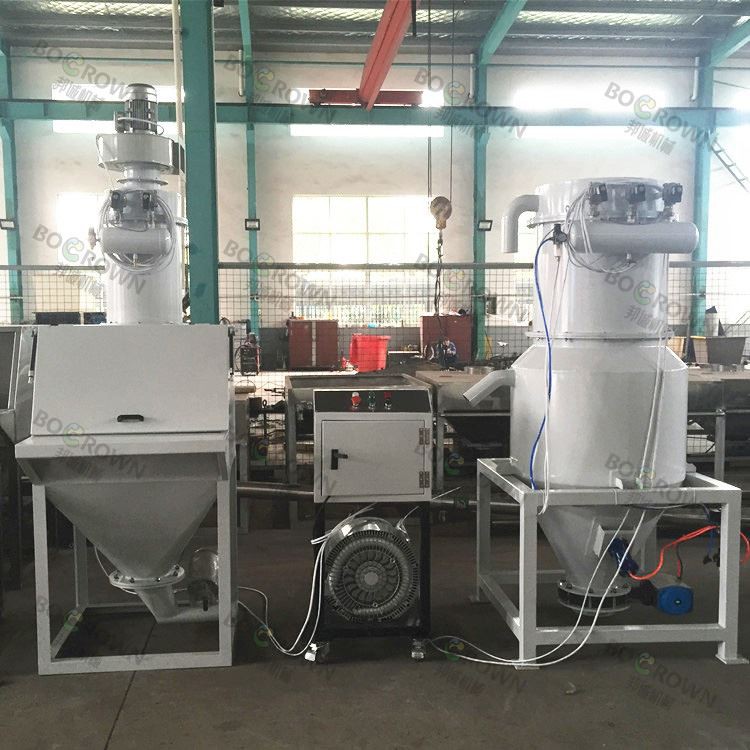

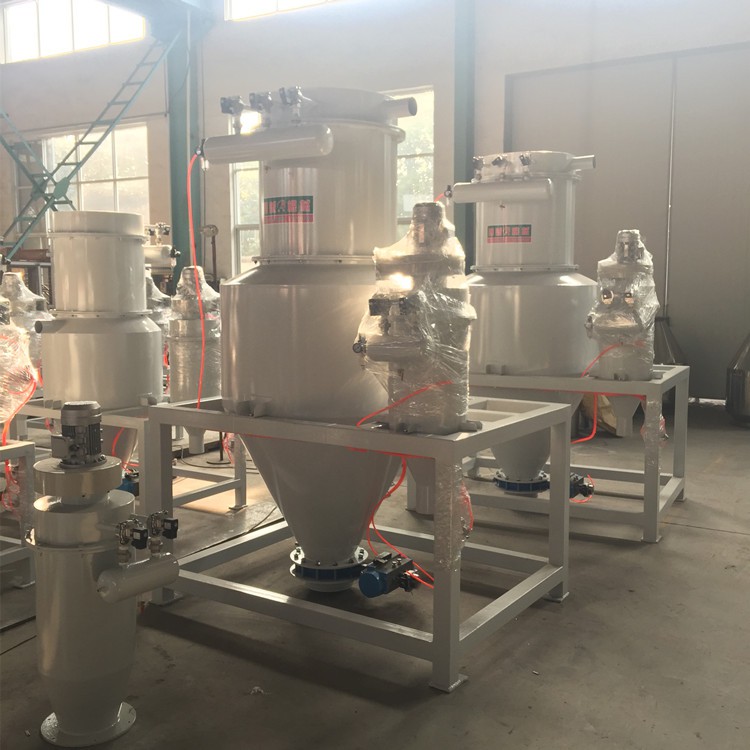

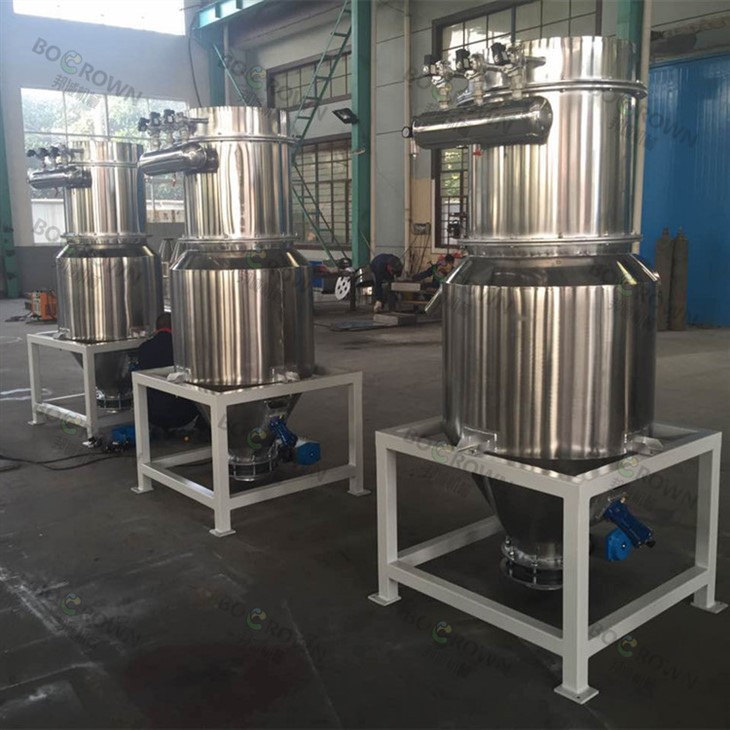

Pneumatic Vacuum Feeder
The Pneumatic Vacuum Feeder is an industrial device that uses compressed air to drive a Venturi system to automatically convey materials. It is widely used in the plastics processing, chemical powder, food and pharmaceutical and fine chemical industries.
Unlike electric vacuum feeding systems, this equipment does not require an electric vacuum pump. It generates negative pressure through pneumatic means to achieve fully enclosed automatic conveying of powder or granular materials. It has a more compact structure and is suitable for working conditions with high requirements for explosion protection or cleanliness.
Working principle
The Pneumatic Vacuum Feeder uses compressed air to enter the Venturi generator, creating a high-speed airflow and thus generating a negative pressure environment.
The operation process includes:
- Compressed air enters the vacuum generator
- Generate stable negative pressure suction
- Material enters the conveying pipeline through the suction port.
- Gas-solid separation device separates materials from air
- The filtration system intercepts dust and cleans itself automatically.
- The entire process achieves continuous, closed-loop, and pollution-free transportation.
Applicable materials
This equipment is suitable for a variety of powder and granular materials:
- PVC/PE/PP plastic granules and powders
- Fillers such as calcium carbonate and talc
- Chemical powders and additives
- Food-grade powders and raw materials
- Pharmaceutical intermediates and raw materials
- Flammable, explosive, or explosion-proof materials (advantageous scenarios for pneumatic systems)
Product Structure Features
Pneumatic vacuum generation system (Venturi)
No electric vacuum pump required
Fully enclosed conveyor structure
Prevents dust leakage
High-efficiency filtration system
Ensuring clean gas emissions
Modular design
Facilitates installation and maintenance
Stainless steel pipelines
Corrosion resistant and easy to clean
Automatic control system
Supports PLC control (optional)
Product performance characteristics
Compact, motorless vacuum pump
Suitable for explosion-proof and clean environments
No dust leakage during the conveying process
Flexible installation and low maintenance costs
Intermittent or continuous conveying can be achieved.
Easy to integrate with automated production lines
Technical parameters
|
Equipment Name |
Pneumatic Vacuum Feeder |
|
Conveying methods |
Pneumatic vacuum transport (Venturi) |
|
Driving method |
Compressed air |
|
Conveying capacity |
50–3000 kg/h |
|
Conveying distance |
1–20m (customizable) |
|
Work pressure |
0.4–0.7 MPa |
|
Material |
SUS304/SUS316 |
|
Control method |
Manual/PLC automatic control (optional) |
|
Filtering methods |
Filter Cartridge/Filter System |
Application areas
Plastic injection molding and extrusion production lines
Automatic conveying system for chemical powders
PVC/PE/PP compounding production line
Food and pharmaceutical clean transport systems
Explosion-proof powder conveying conditions
Industrial automated batching system
Product Advantages
The Pneumatic Vacuum Feeder uses a pneumatic vacuum generation method, eliminating the need for an electric vacuum pump. Its simpler and safer structure makes it particularly suitable for explosion-proof, clean, and space-constrained industrial environments, making it one of the important solutions for modern automated powder conveying systems.
