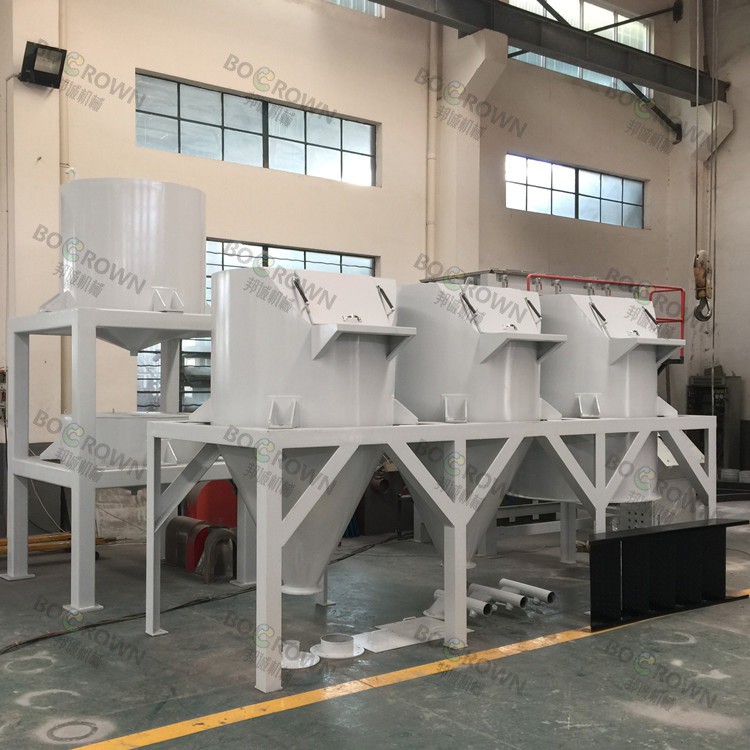

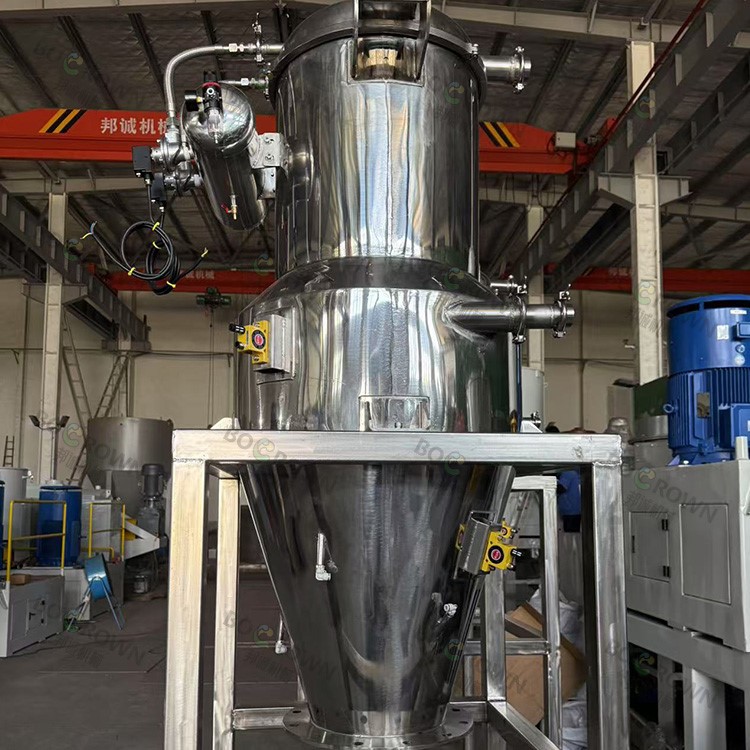

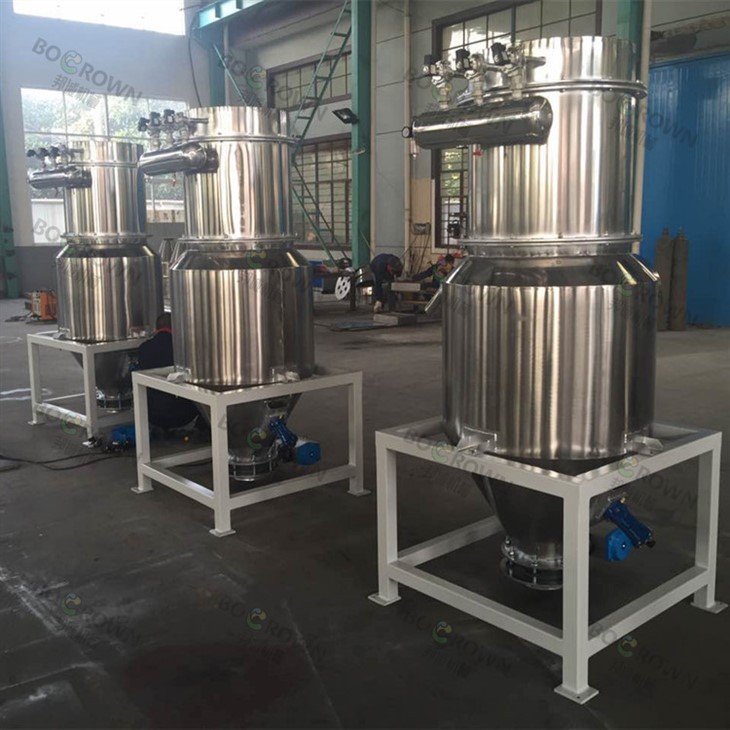

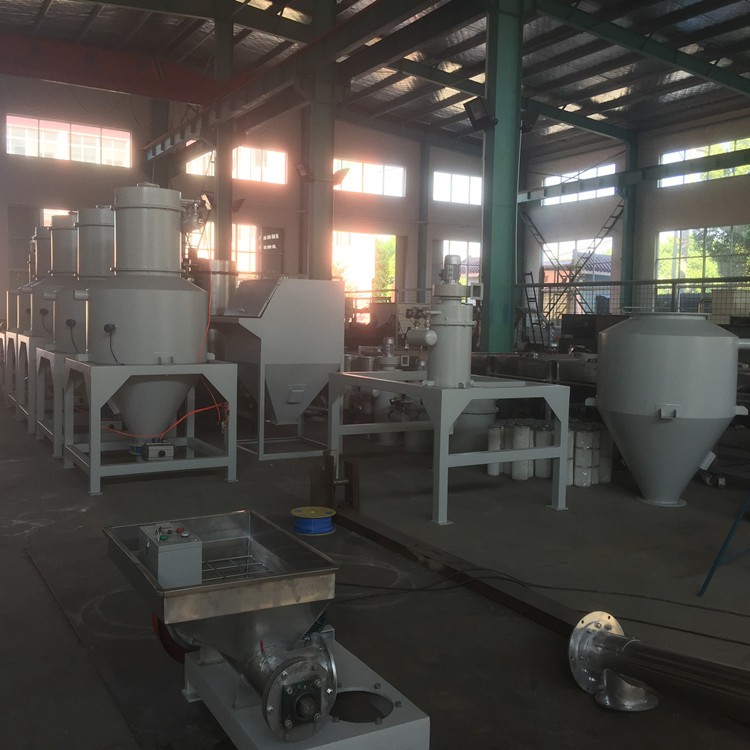

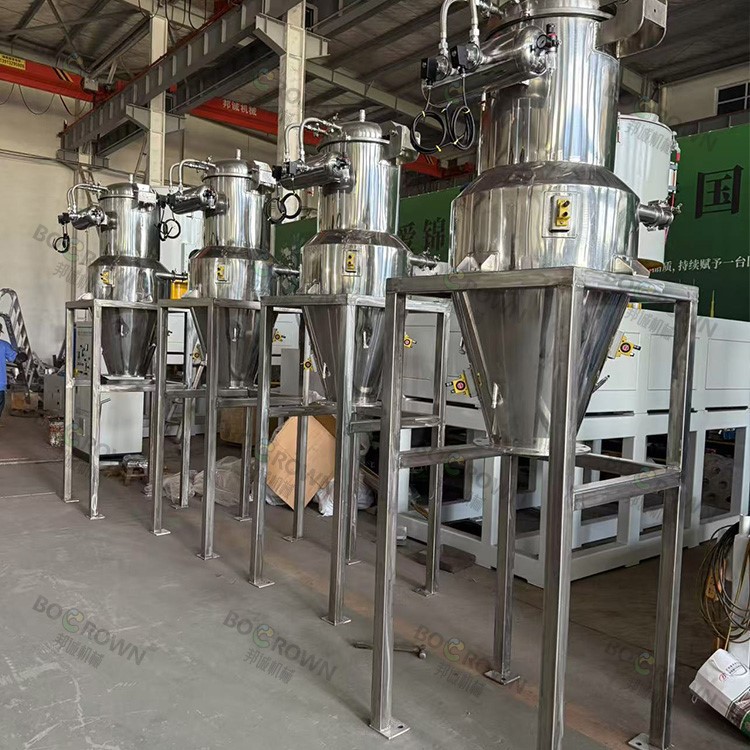

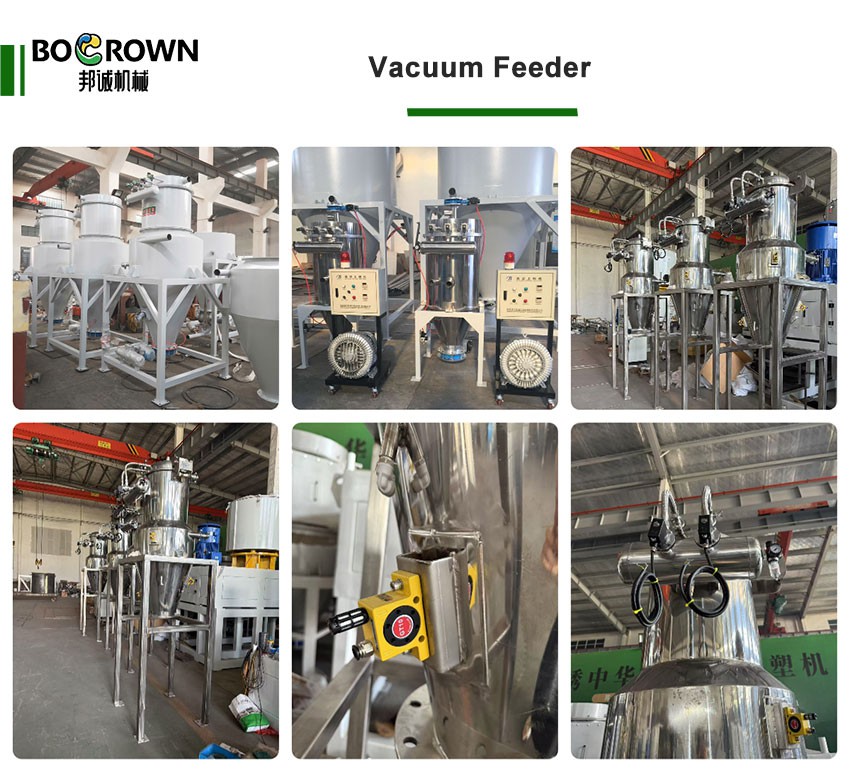

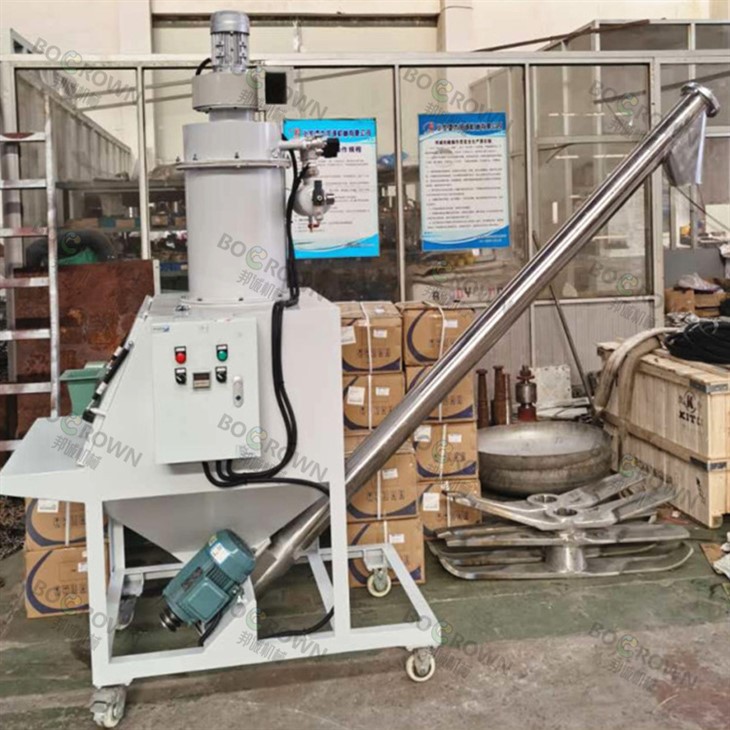

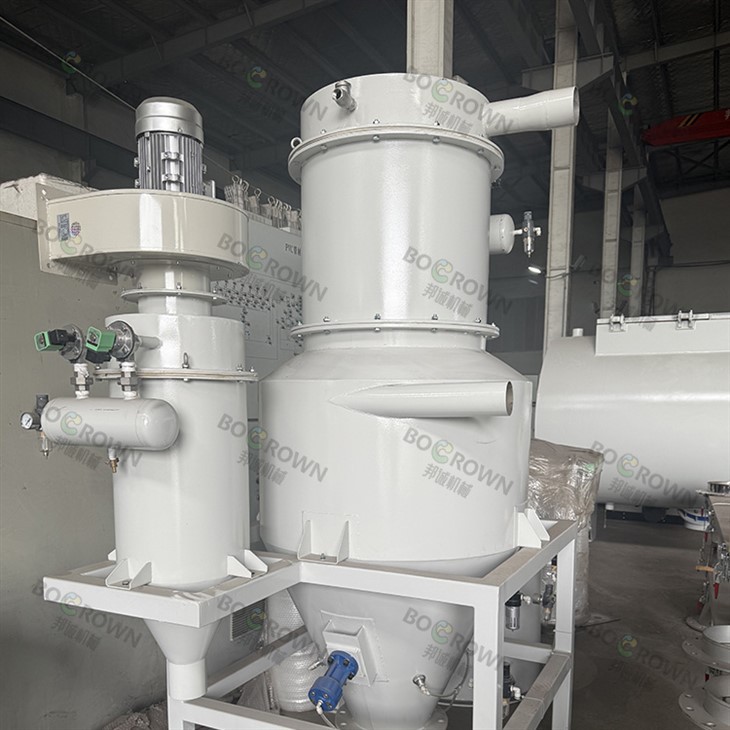

Electric Vacuum Feeder
The Electric Vacuum Feeder is an automated conveying device that uses an electric vacuum pump as a negative pressure source for the dust-free conveying and automatic feeding of powder and granular materials.
This equipment is widely used in the plastics processing, chemical powder, food and pharmaceutical and new energy materials industries. It can automatically transport materials from storage tanks, packaging bags or silos to mixers, hoppers or extruders to achieve efficient, continuous and closed production.
Working principle
The Electric Vacuum Feeder uses an electric vacuum pump to generate a stable negative pressure, which allows materials to enter the conveying pipeline under the action of airflow, and completes automatic separation and collection.
The operation process includes:
- The electric vacuum pump starts and forms a negative pressure system.
- Material enters the conveying pipeline through the suction port.
- Gas-solid separation device separates materials from air
- Filtration system intercepts dust particles
- Materials enter the target equipment or silo
- The system automatically cleans the dust and enters the next conveying cycle.
Applicable materials
This equipment is suitable for a variety of powder and granular materials:
- PVC/PE/PP plastic granules and powders
- Mineral fillers such as calcium carbonate and talc
- Chemical powders and additives
- Food-grade powders and raw materials
- Pharmaceutical intermediates and fine powders
- New energy materials (such as some lithium battery powders)
Product Structure Features

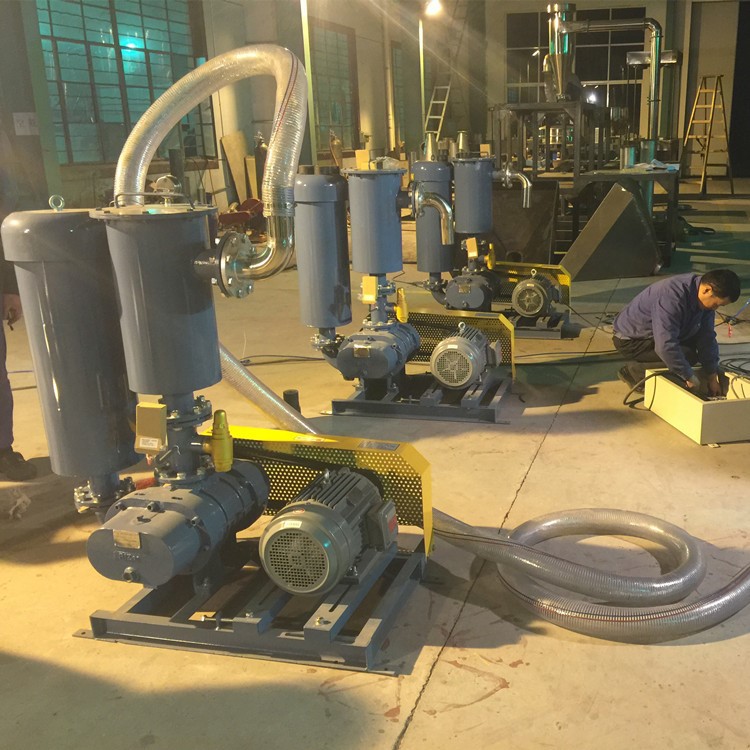

Electric vacuum pump system: provides a stable negative pressure source
Fully enclosed conveyor structure: prevents dust leakage
High-efficiency filtration device: protects the stable operation of the vacuum system.
Gas-solid separation design: improves conveying efficiency
Stainless steel pipelines: corrosion resistant and easy to clean
Modular structure design: facilitates maintenance and expansion
PLC control system (optional): Enables intelligent operation
Product performance characteristics
Stable and adjustable conveying capacity
Suitable for continuous automated production
No dust pollution during the conveying process
High degree of automation, reducing manual operation
Long-distance transportation can be achieved
Easy to integrate with production line equipment
Technical parameters
|
Equipment Name |
Electric Vacuum Feeder |
|
Conveying methods |
Electric vacuum negative pressure conveyor |
|
Conveying capacity |
100–6000 kg/h |
|
Conveying distance |
1–30m (customizable) |
|
Vacuum degree |
-0.4~-0.9 bar |
|
Vacuum system |
electric vacuum pump |
|
Power range |
1.5–15kW |
|
Material |
SUS304/SUS316 |
|
Control method |
PLC automatic/manual control |
|
Filtration system |
Filter cartridge/cartridge filtration system |
Application areas
Plastic injection molding and extrusion production lines
PVC/PE/PP blending system
Chemical powder conveying and feeding system
Clean production lines for food and pharmaceuticals
New energy material automatic conveying system
Industrial automated powder handling system
Hot Tags: electric vacuum feeder, China electric vacuum feeder manufacturers, suppliers, factory
Previous

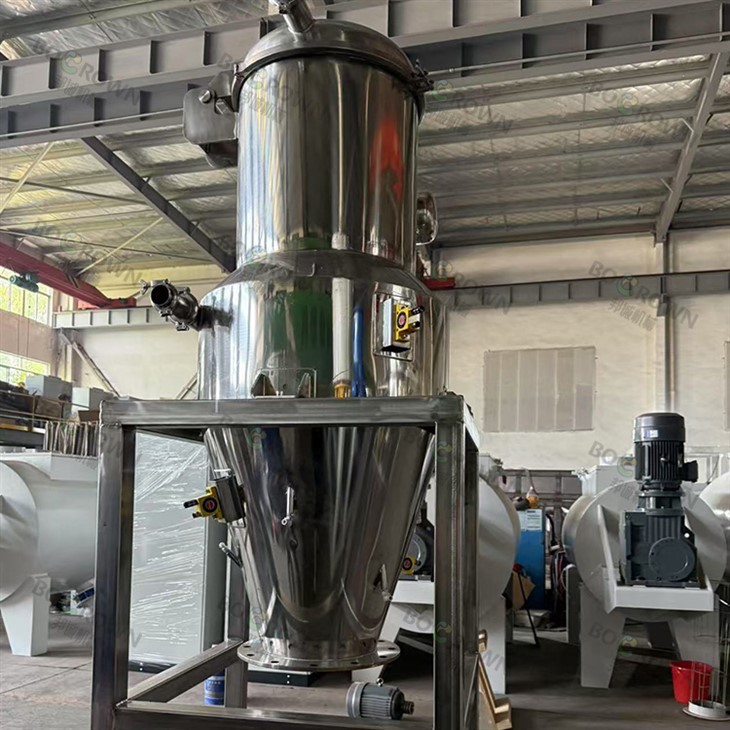

Vacuum Conveyor FeederNext
