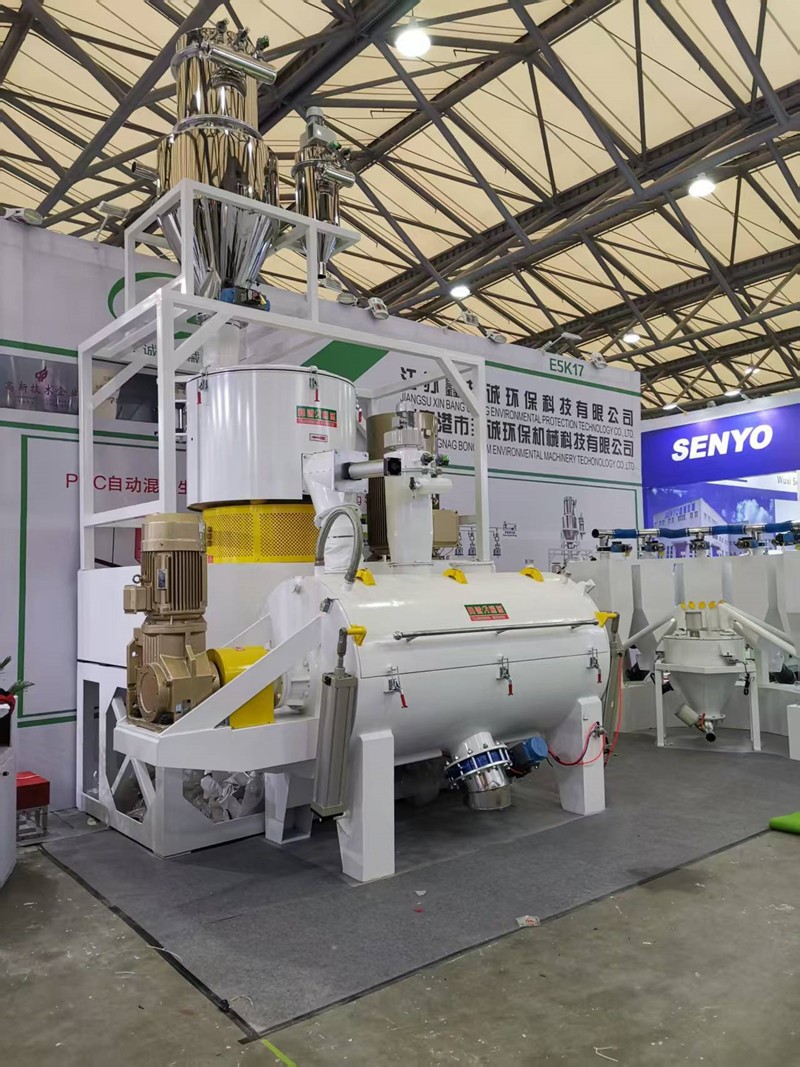

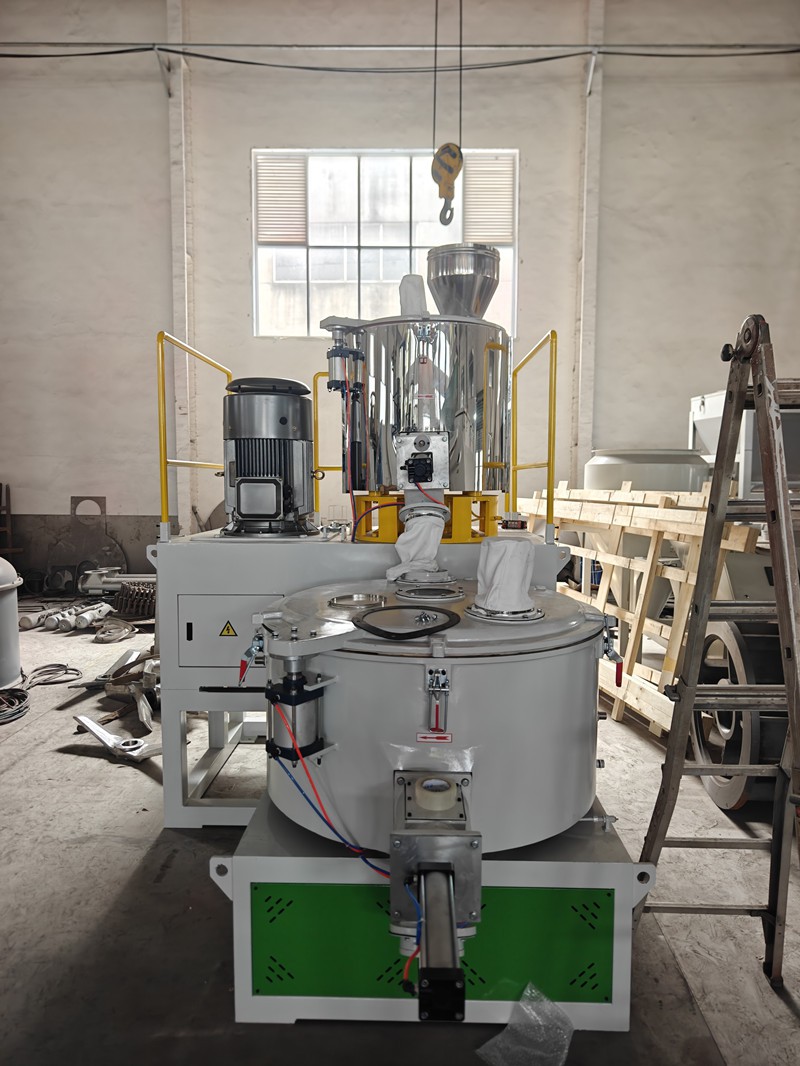

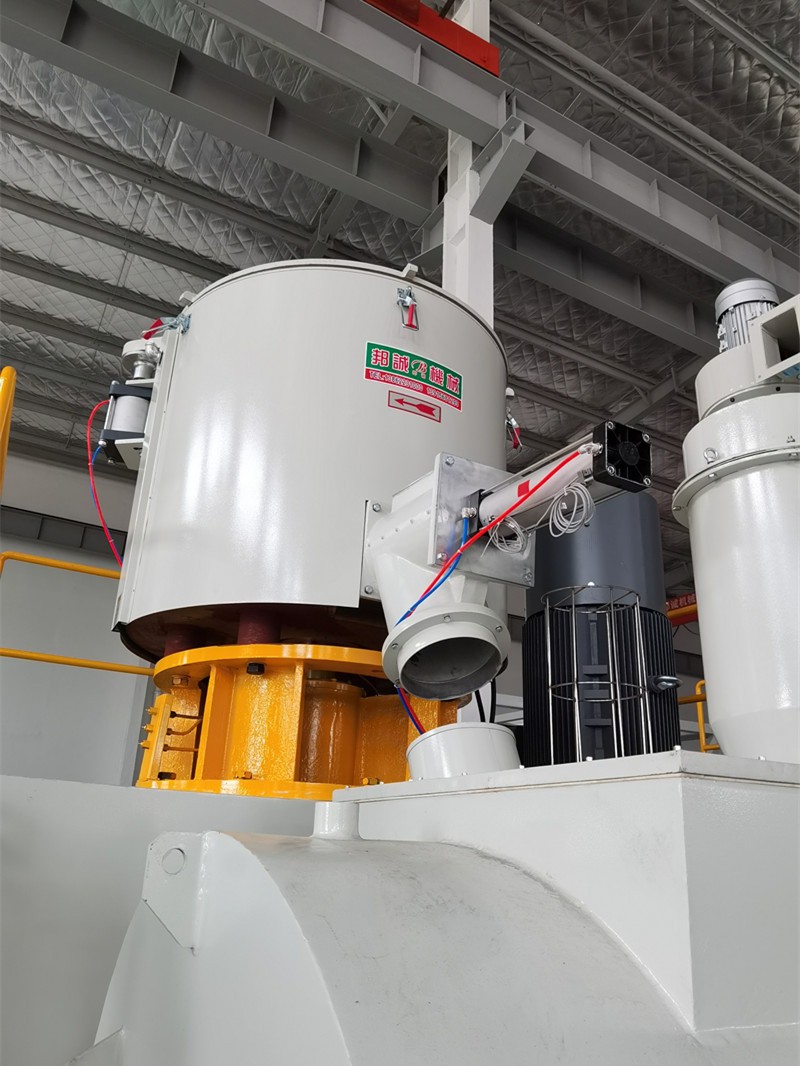

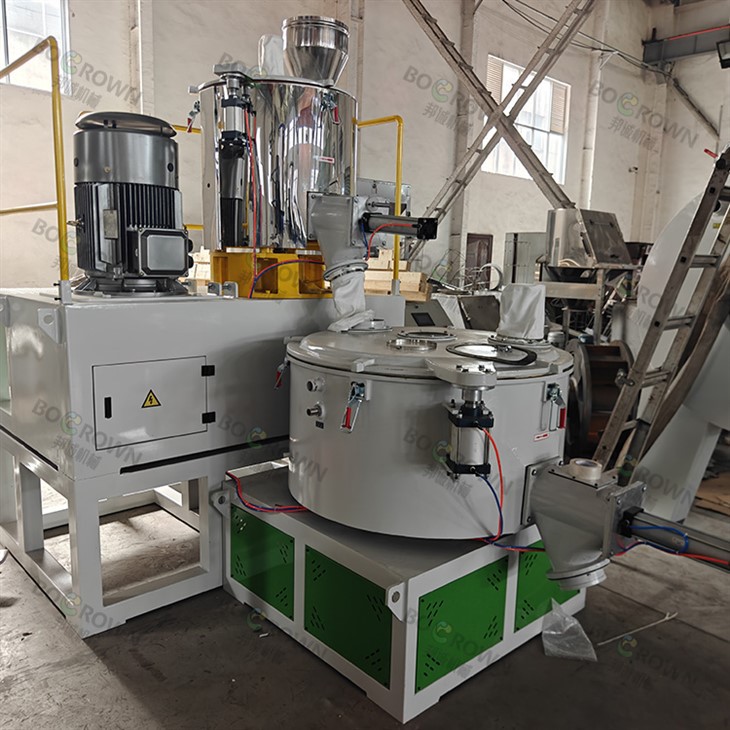

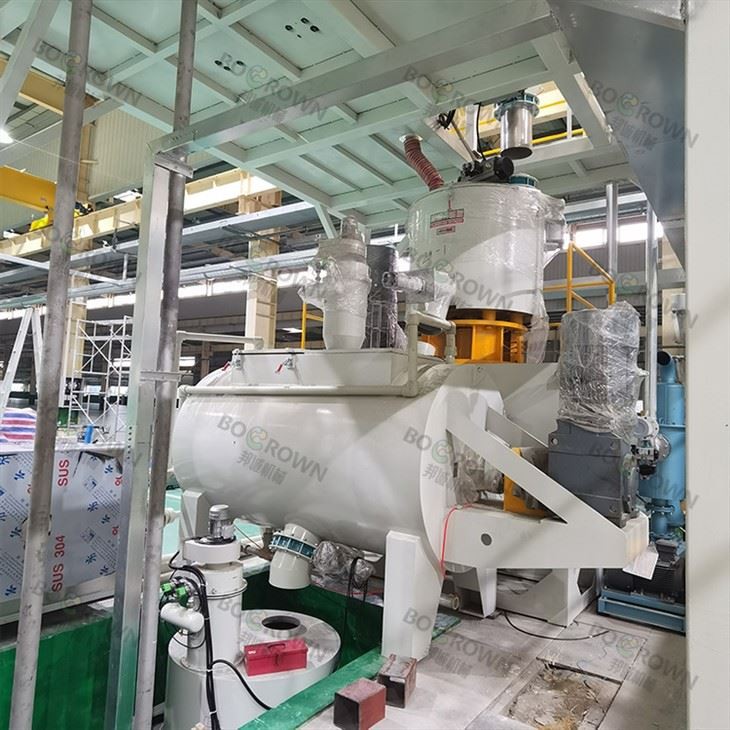

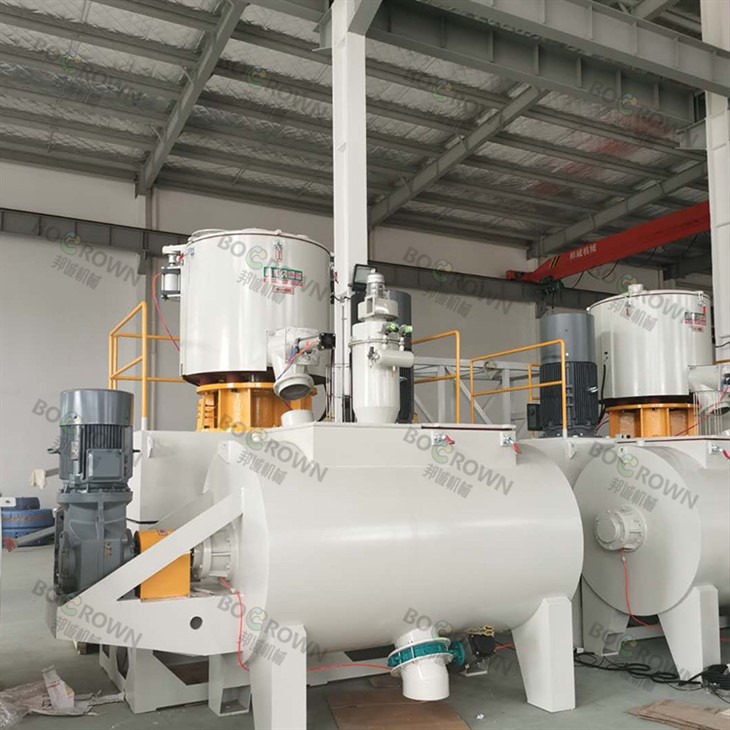

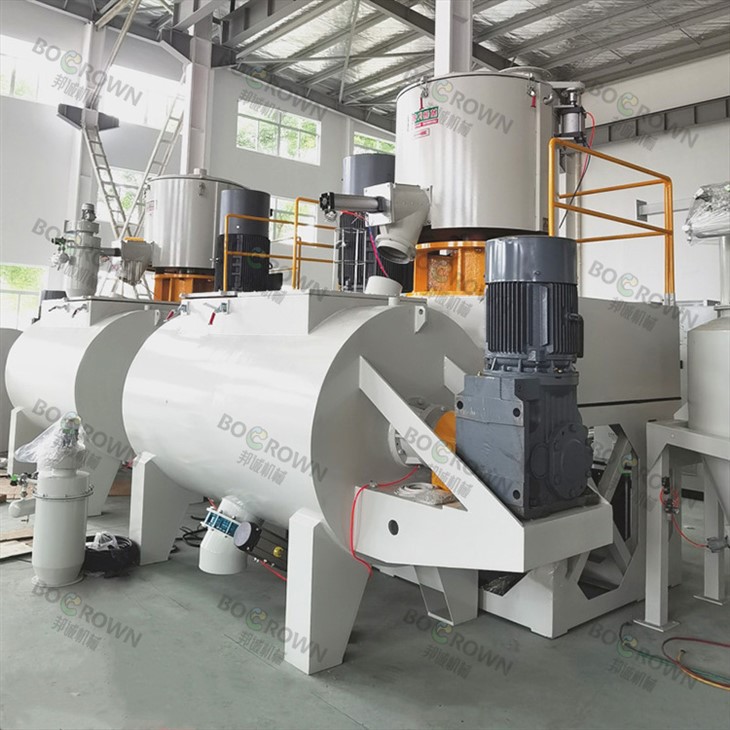

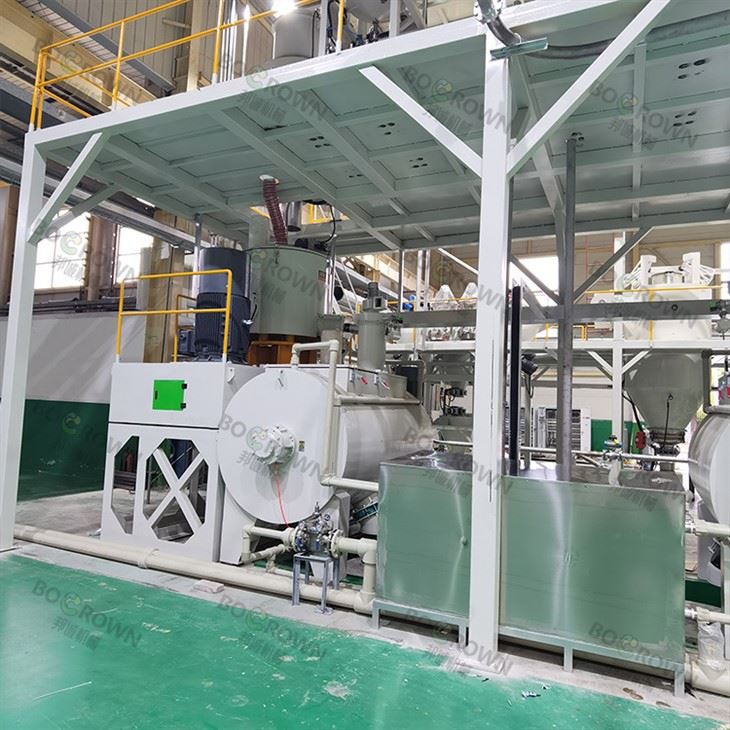

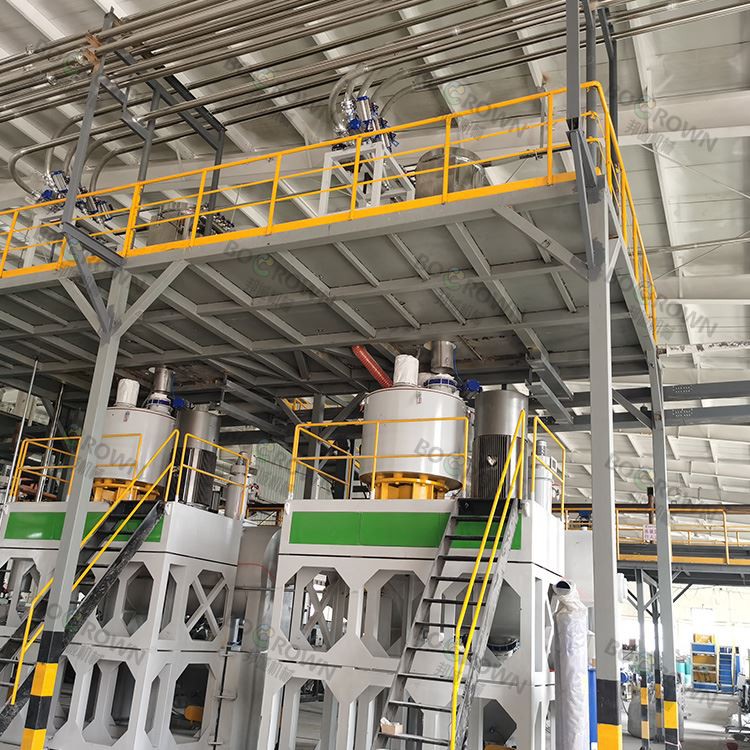

High Speed Heating Mixer Machine
The High-Speed Heating Mixer Machine is an industrial equipment used for rapid mixing and simultaneous heating of powder and granular materials. It is widely used in the production of PVC compounding materials, plastic modification, chemical powders, and composite materials.
This equipment uses a high-speed stirring system and a frictional heating mechanism to quickly bring the raw materials to the set temperature during the mixing process, while achieving uniform dispersion and full integration of additives. It is one of the core pieces of equipment in the hot mixing process of plastics processing.
Process function
High-Speed Heating Mixer Machines are typically used in the hot mixing stage at the front end of a production line, and their main functions include:
- Mix PVC resin and additives quickly and evenly.
- Using frictional heat to achieve heating and activation
- Improve filler dispersibility and formulation stability
- Provides homogeneous materials for cooling mixing or extrusion granulation
Applicable materials
This Industrial Horizontal Ribbon Mixer equipment is suitable for various industrial powder and compounding systems.
PVC resin powder and composite formulation
Calcium carbonate (CaCO₃) and mineral fillers
Color powder, masterbatch and functional additives
Modified plastic materials (PE/PP/PVC)
Chemical powders and dry mixtures
Dry powder mortar raw materials for building
Working principle
The equipment uses high-speed rotating stirring blades to drive the material to undergo forced circulation in a closed mixing chamber, achieving rapid mixing under the action of shearing, convection and friction.
The high-speed collision between materials generates heat, causing the mixing system to heat up to the set range in a short time, while promoting the adsorption and dispersion of additives, thereby forming a uniform and stable mixture.
Product Structure Features
High-speed mixing and heating integrated structure: reduces process steps
Enhanced mixing system design: Improves mixing efficiency and stability
Stainless steel inner liner structure: corrosion resistant and wear resistant
Sealed mixing chamber: Reduces dust leakage
Automatic temperature control system: precisely controls the heating process
Bottom-mounted quick-unloading structure: Improves production efficiency
Product performance characteristics
Fast mixing speed and high heating efficiency
Good material dispersion
Suitable for high-filler formulation systems
Stable operation, suitable for continuous industrial production
Precise temperature control and high process repeatability

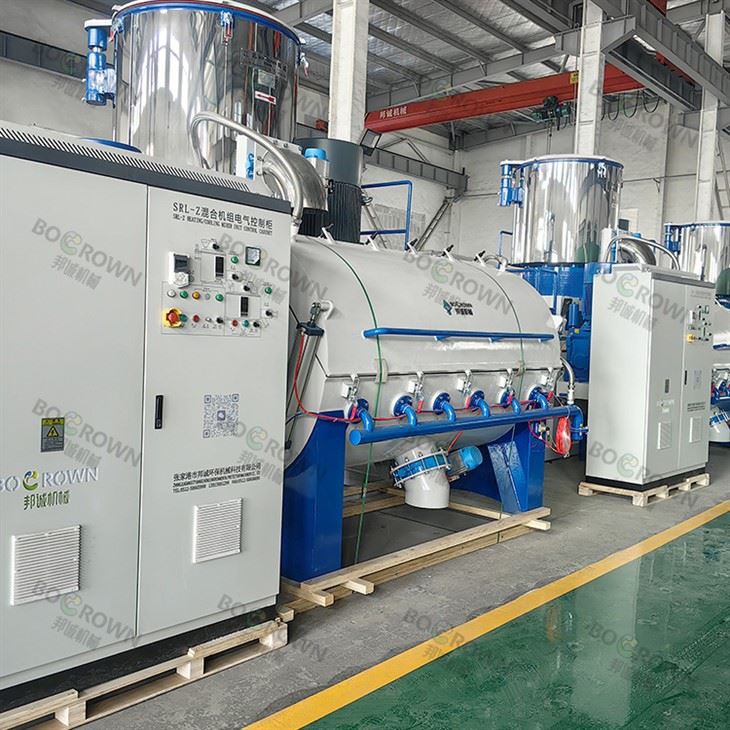

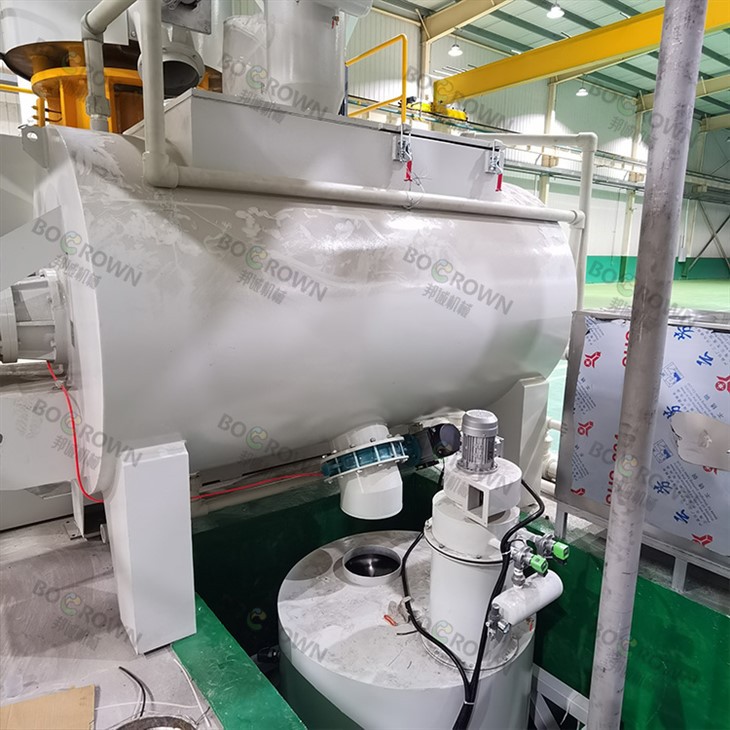

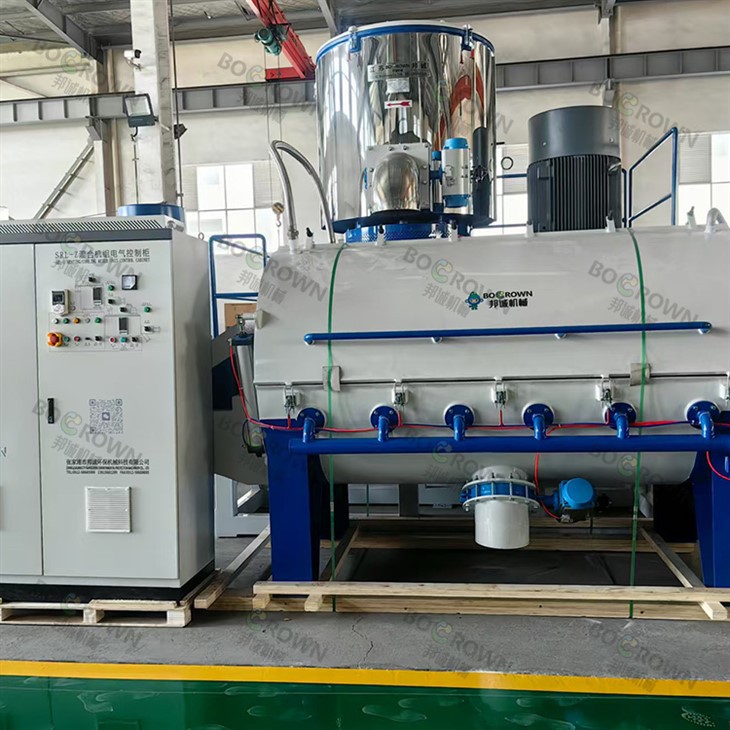

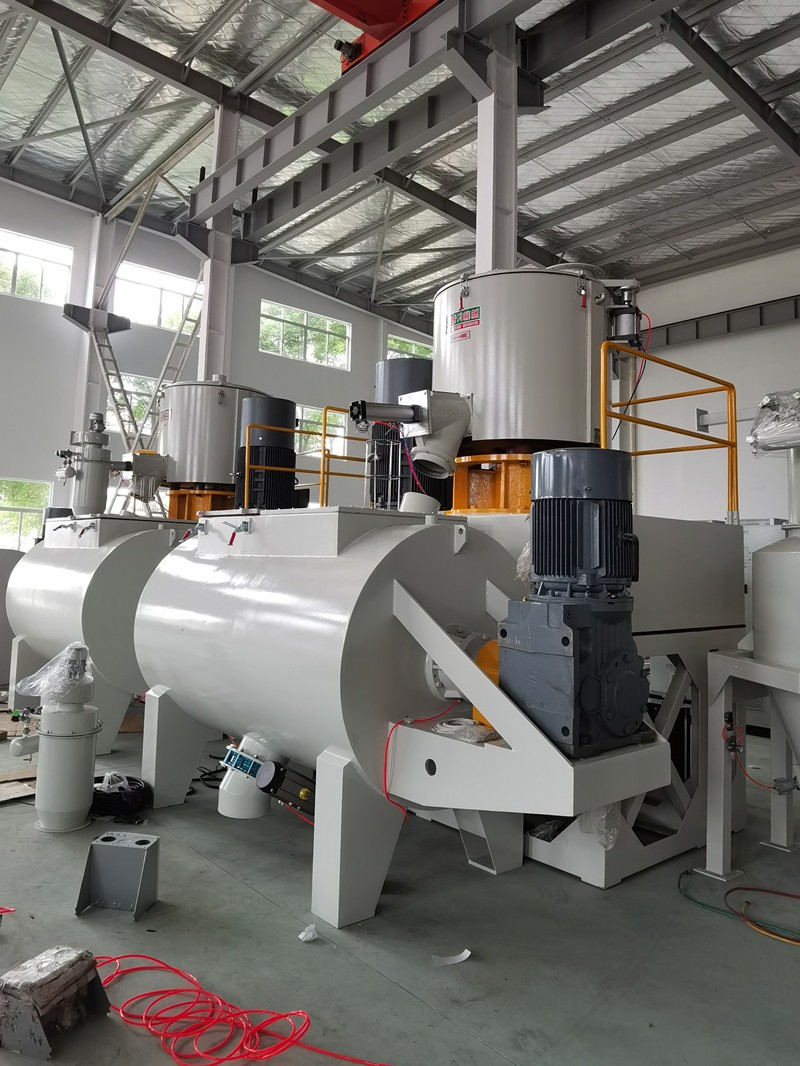

It can be combined with a cooling mixer to form a complete system.
Technical parameters
|
Equipment Name |
HighSpeedHeating MixerMachine |
|
Capacity range |
100–2000L |
|
Main motor power |
11–90kW |
|
Stirring speed |
300–1500rpm |
|
Mixing time |
3–10 minutes |
|
Discharge temperature |
80–120°C |
|
Material |
SUS304/SUS316 stainless steel |
|
Control system |
PLC automatic control (optional) |
|
Discharge method |
Pneumatic/electric bottom unloading |
Application areas
PVC pipe and profile production
Plastics Modification and Blending Industry
Cable and electrical materials production
Chemical powder processing industry
Production of dry powder mortar for construction
Industrial-grade composite material manufacturing
